Self-Priming Pumps (SMSJ series)
Features
- The pump casing shall be fabricated from AISI 304 stainless steel sheet metal and shall have axial suction and radial discharge port.
- The pumps shall have closed type impeller with material of construction of AISI 304 stainless steel sheet metal.
- The Pump shaft sealing shall be by mechanical shaft seal of Carbon/Ceramic/NBR/AISI 304 construction suitable for 10 bar pressure rating and water temperature from 0 to +90 deg. C.
- The Motor will be suitable for 1 phase, 230volts, 50 Hz (Standard Supply), 3 phase, 415volts, 50 Hz.
- All Fabricated stainless steel pump components shall be manufactured in house by the manufacturing company.
Variety & Range
- Flow range: up to 5.4 m³/h
- Head range: up to 40 metres
- Rated speed: 2900 rpm
Applications
Lawns & Garden
Car Washing
Hospital
Restaurants
Industrial
Hotels
Other Related Products

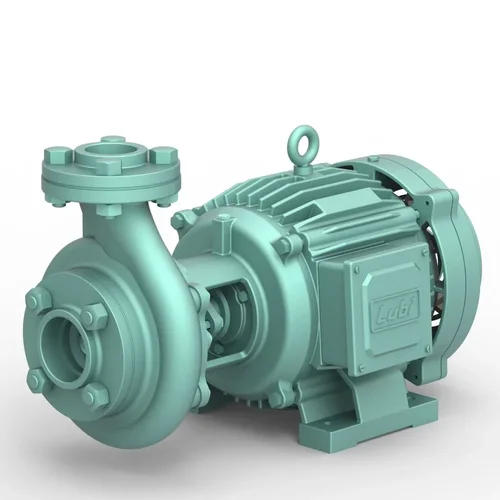

Centrifugal Monoblock Pumpsets (MDH s…
