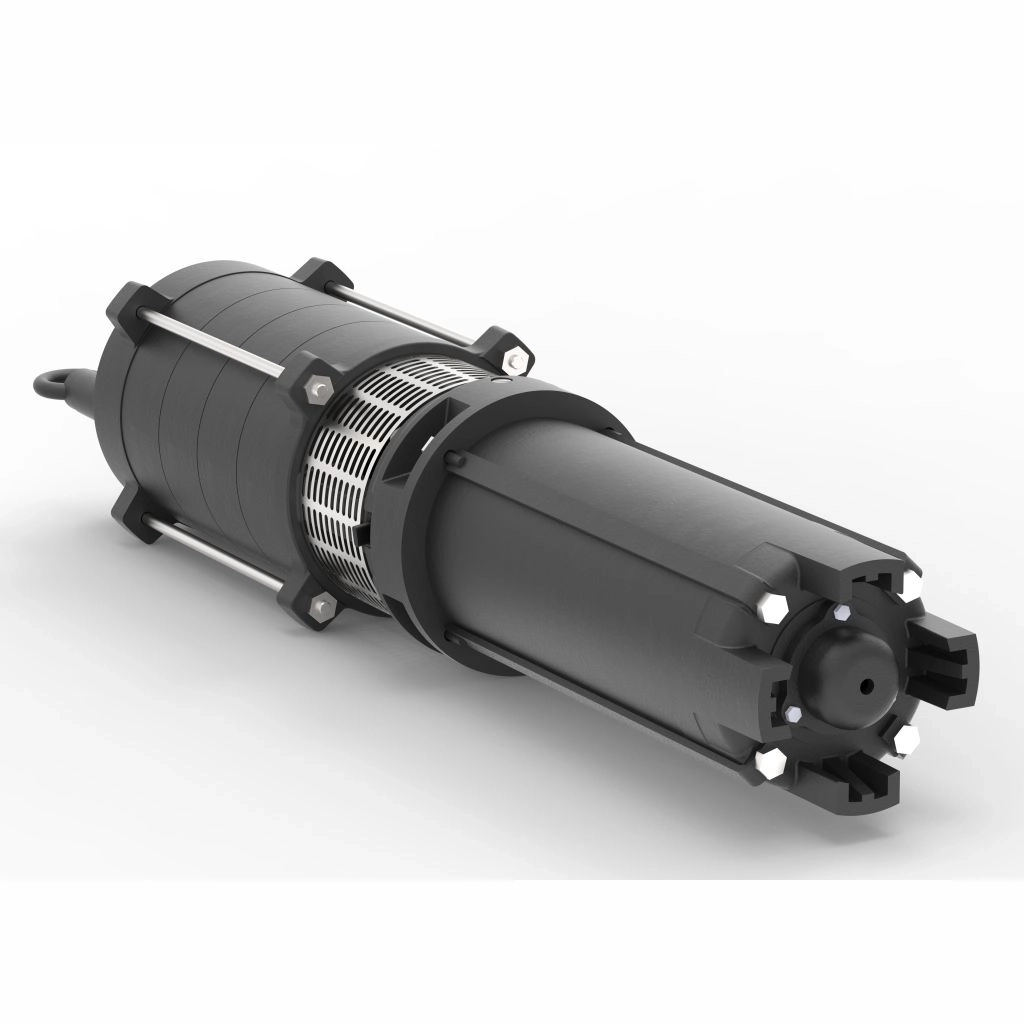

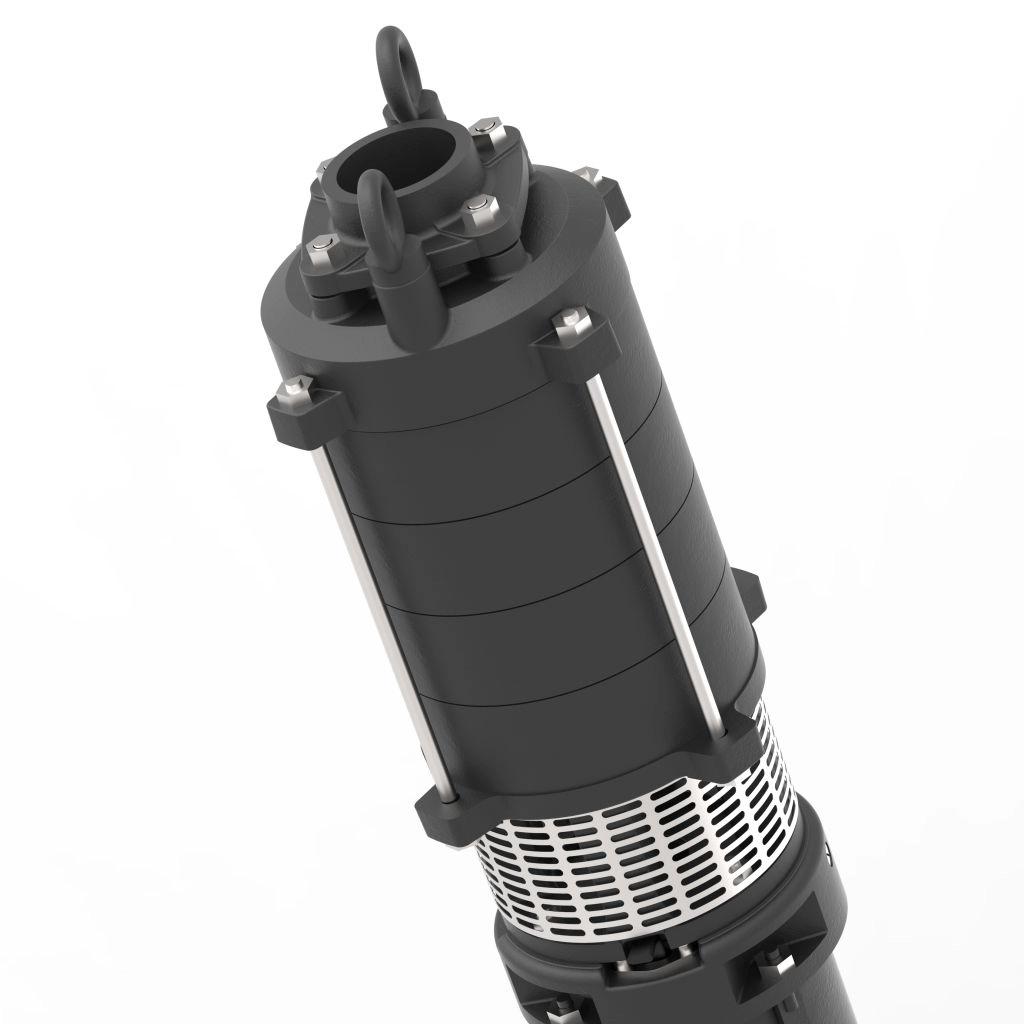

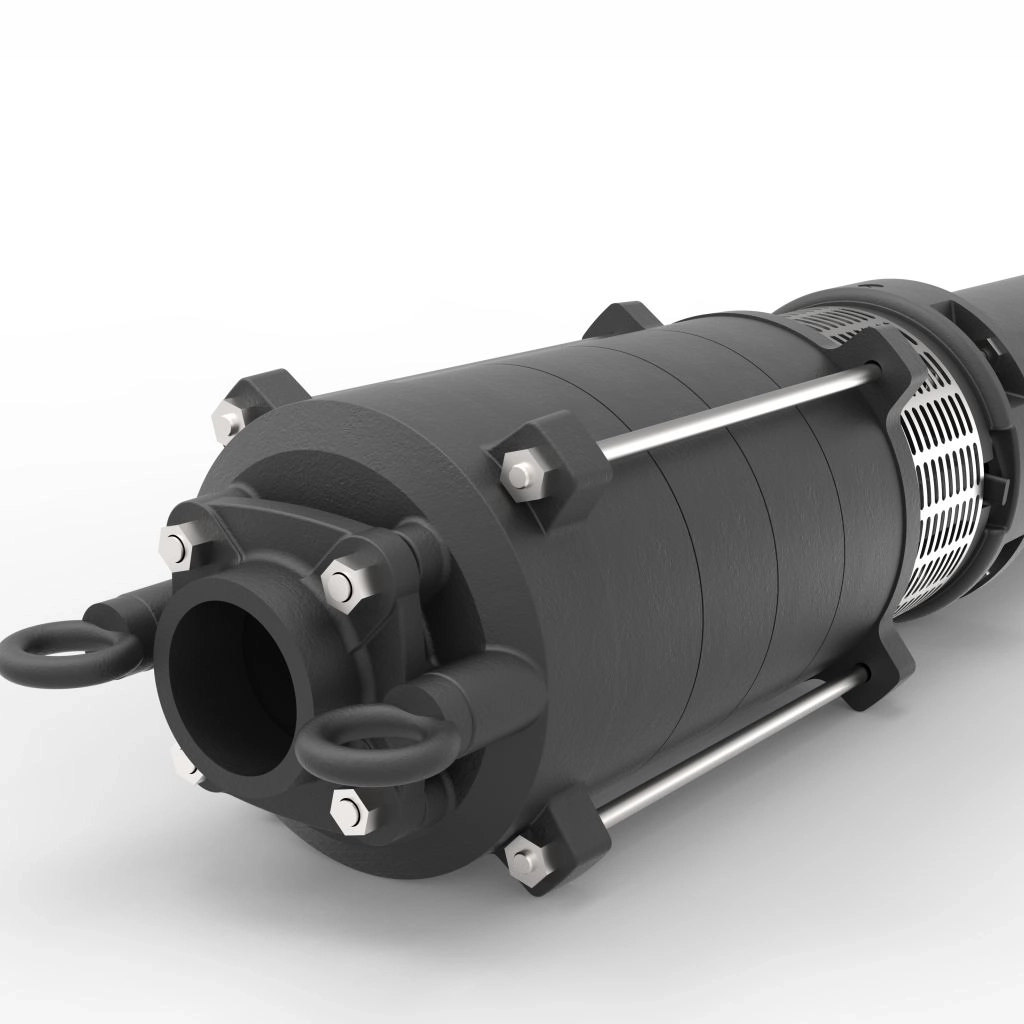

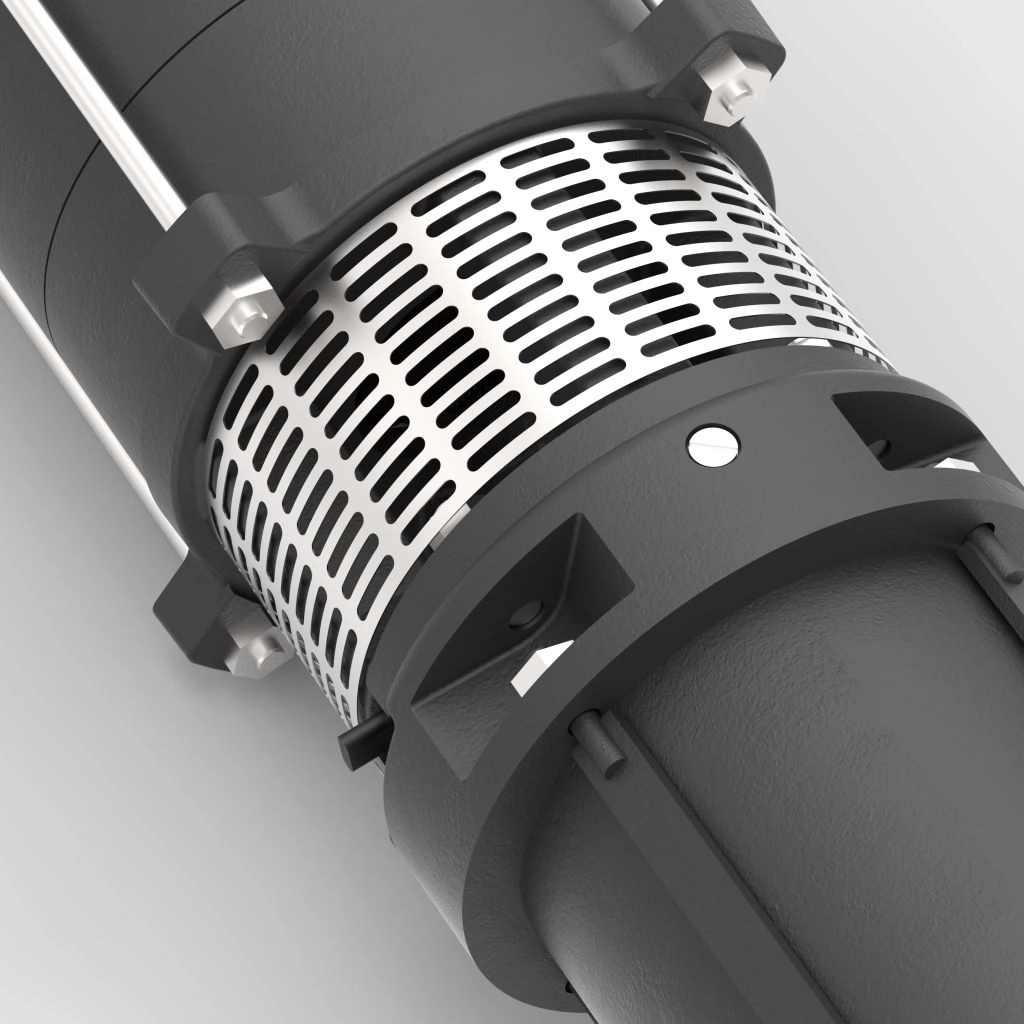

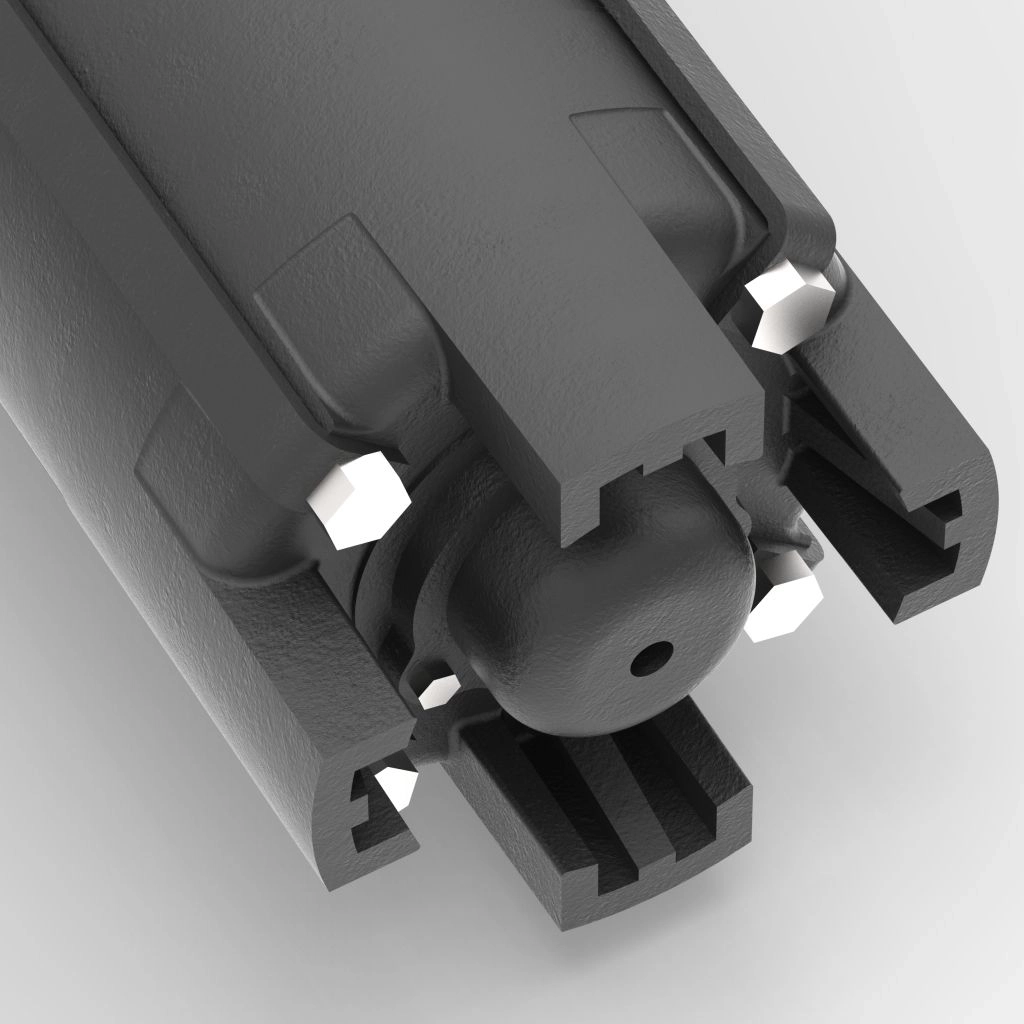

Vertical Multi-Stage Openwell Submersible Pumps (LCV series)

Features

  • It has well designed sleeve and thrust bearing of adequate capacity for longer life.
  • High operating efficiencies of pumpset result into high water discharge rate and lower power bills.
  • All components are precisely machined on modern precision machine tools to give you years of reliable operation.
  • Pumpset shall be designed to withstand voltage drops to 320 volts.
  • Stator and rotor of the monoset are vacuum impregnated with synthetic varnish and epoxy coated for corrosion resistance.
  • All rotating components are dynamically balanced to ensure long bearing life and vibration free smooth operation.
  • All pumpsets are fully tested prior to dispatch.
  • All cast iron parts shall be CED (cathode electrode deposition) coated for corrosion resistance with uniform coating and controlled deposition thickness of 20-30 microns.

Variety & Range

  • Flow range: up to 54 m³/h
  • Head range: up to 141 metres
  • Rating: 1 phase – 0.37 to 1.50 kW, 3 phase – 2.2 to 14.0 kW
  • Rated speed: 2900 rpm

Applications

Apartments

Water Supply

Irrigation

Civil & Construction

Fountains

Canal / River Belt Irrigation
