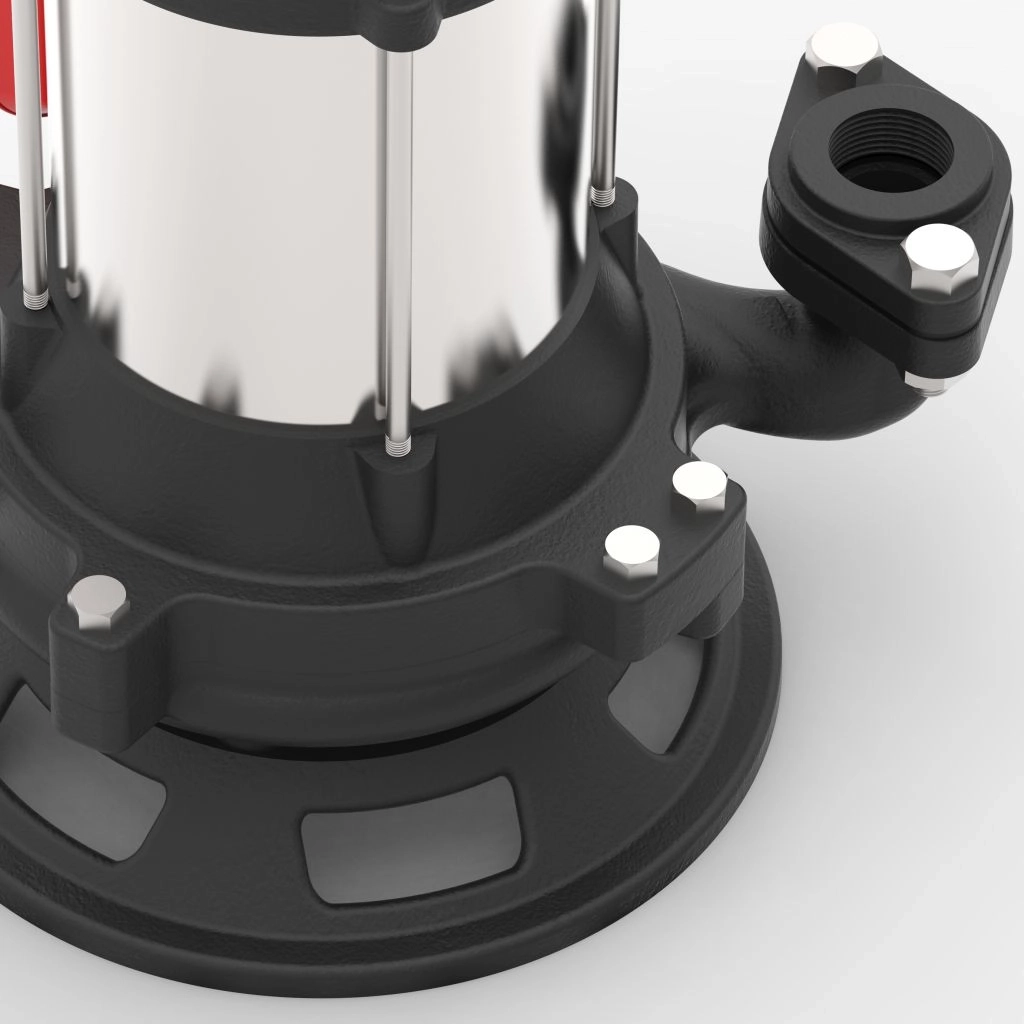

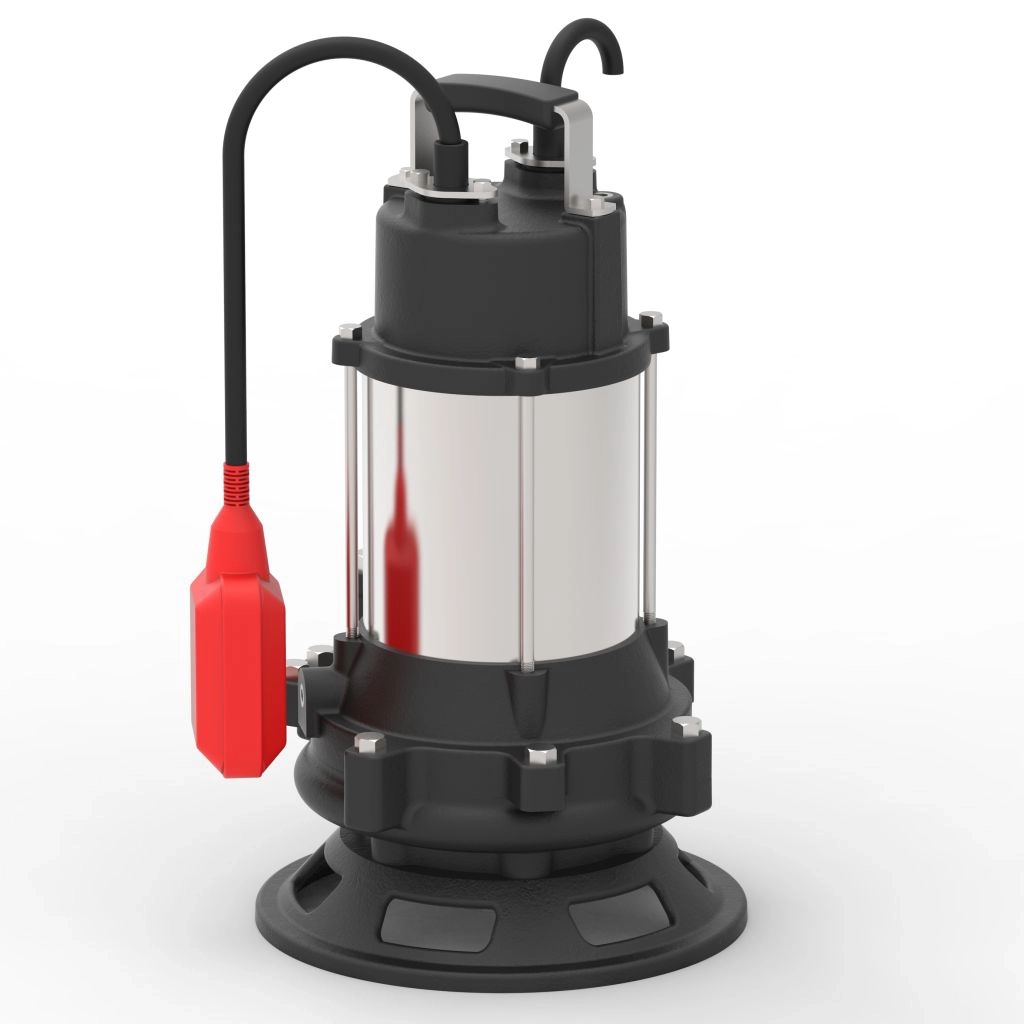

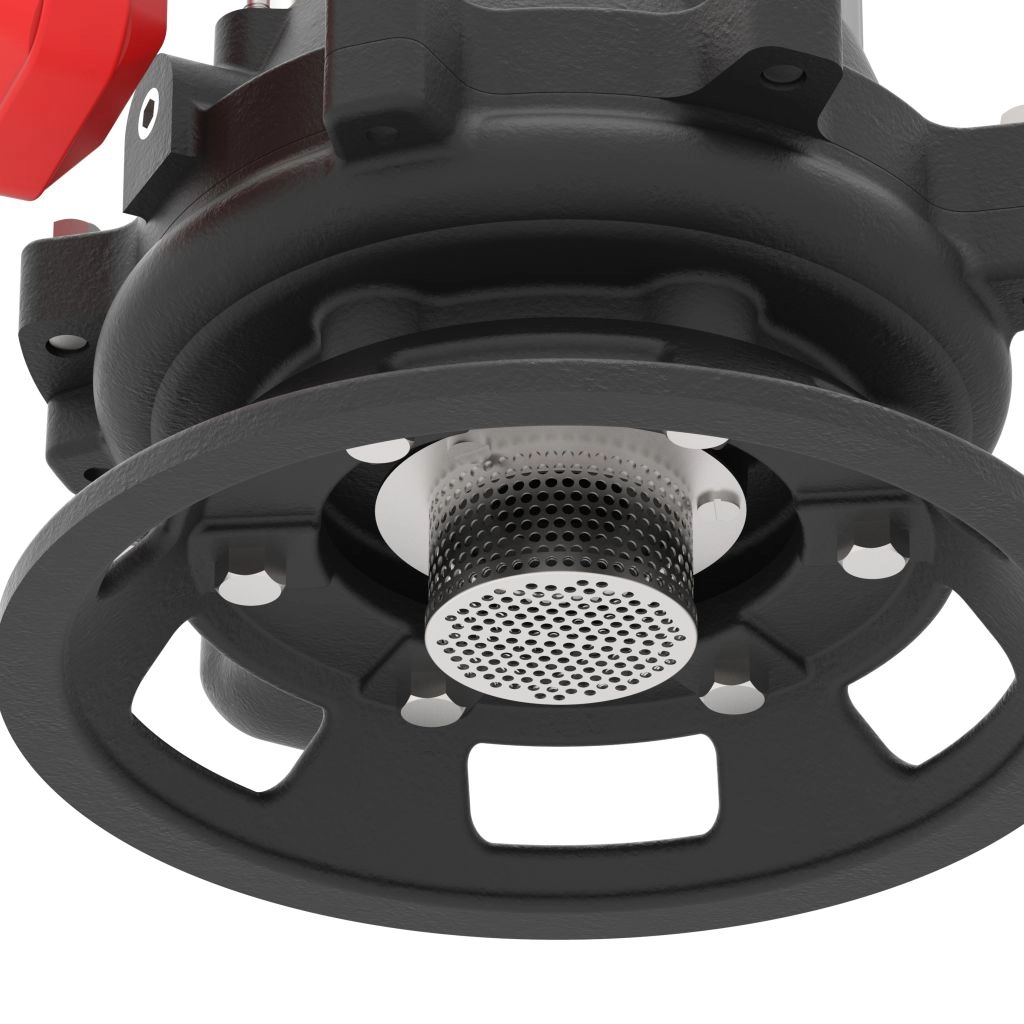

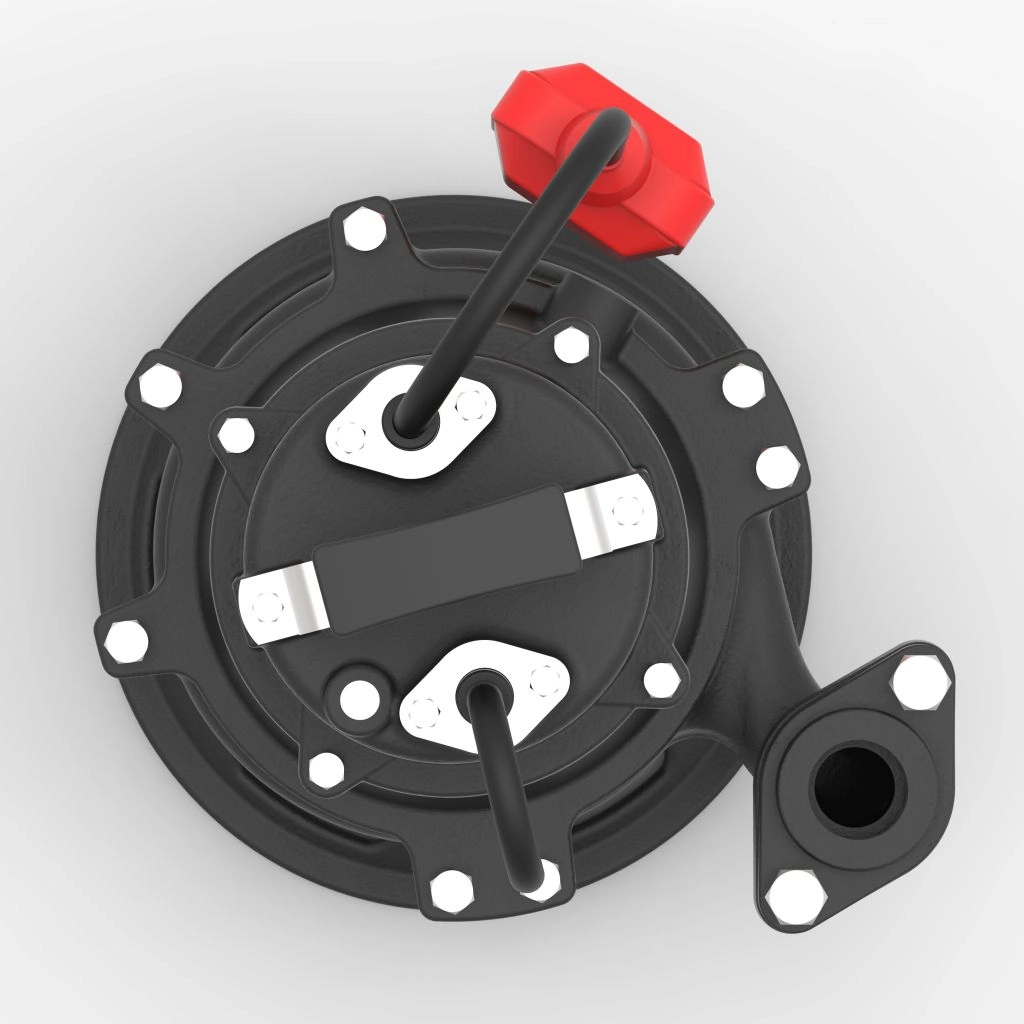

Clean Water Submersible Monoset Pumps (LVP series)

Features

  • The pump volute shall be of cast Iron as per grade FG 260 of IS 210/ISO 186 with vertical discharge port. The pumps shall have non clog semi open impeller with material of construction of Cast Iron (standard supply), CF8 and CF8M, suitable for pumping liquids up to 50 deg. C.
  • The pump shaft shall be made of stainless steel as per ASTM A582 and grade of AISI 410.
  • The pump shall be close coupled with a dry submersible motor, having class F insulation, IP 68 protection, 2900 rpm, epoxy sealed cable entry, with S1 – When pump is completely submerged and S3 – When pump is partially submerged application.
  • All cast iron parts shall be CED (cathode electrode deposition) coated for corrosion resistance with uniform coating and controlled deposition thickness of 20-30 microns.

Variety & Range

  • Flow range: up to 9 m³/h
  • Head range: up to 31 metres
  • Rating: 0.75 kW
  • Rated speed: 2900 rpm

Applications

Hospital

Apartments

Restaurants

Commercial Buildings

Hotels

Resorts
