Effluent Vortex Pumps (LBP series)

Features

  • All wetted pump components shall be constructed from stainless steel AISI 304 so that liquids that are compatible with AISI 304 material can suitably be pumped. The pumps shall have semi open vortex type impeller and stainless steel shaft. The pump shall be suitable for pumping liquid up to 50 deg. C.
  • The Pump shall be supplied with mechanical shaft seal with material of construction of SiC / SiC/Viton/SS316.
  • The pump shall be close coupled with dry submersible motor, having class F insulation, IP 68 protection, 2900 rpm, epoxy sealed cable entry, with S1 duty for fully submerged and S3 duty for partially submerged, 1 phase, 240 volts, 3 phase, 415 volts.

Variety & Range

  • Flow range: up to 27 m³/h
  • Head range: up to 15 metres
  • Rating: 0.37kW & 1.50 kW
  • Rated speed: 2900 rpm

Applications

Hospital

Apartments

Restaurants

Civil & Construction

Hotels

Resorts

Other Related Products

Drainage Pumps (LAS series)

The LAS series are close coupled, submersible construction drainage p…

View Products

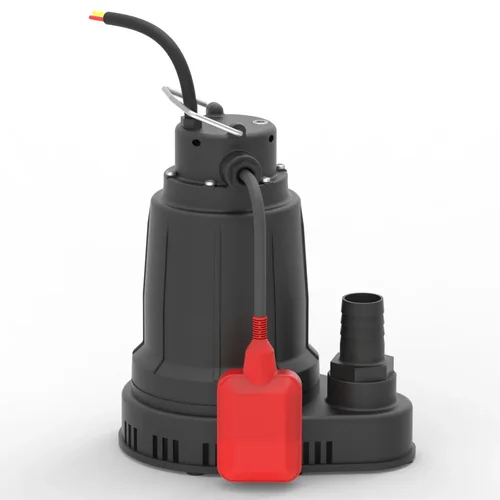

Corrosion Proof Submersible Drainage …
