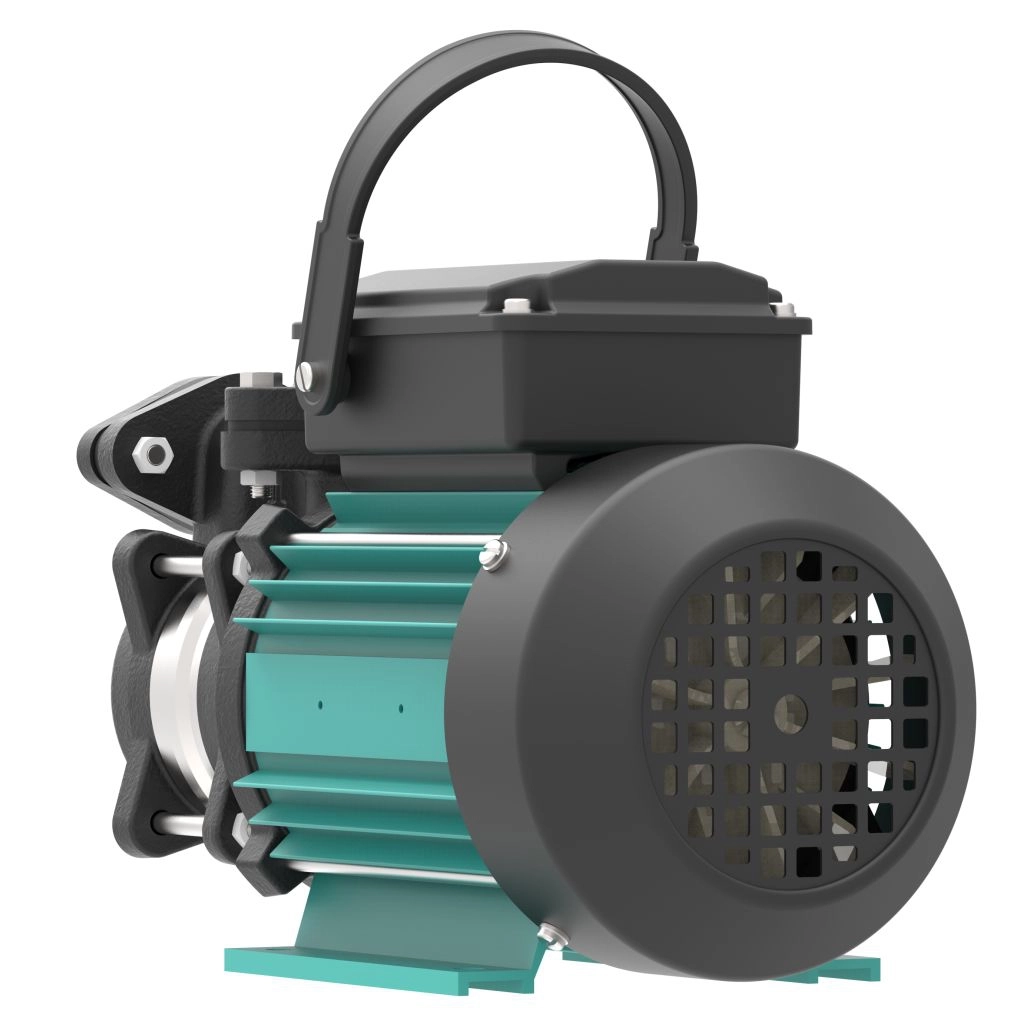

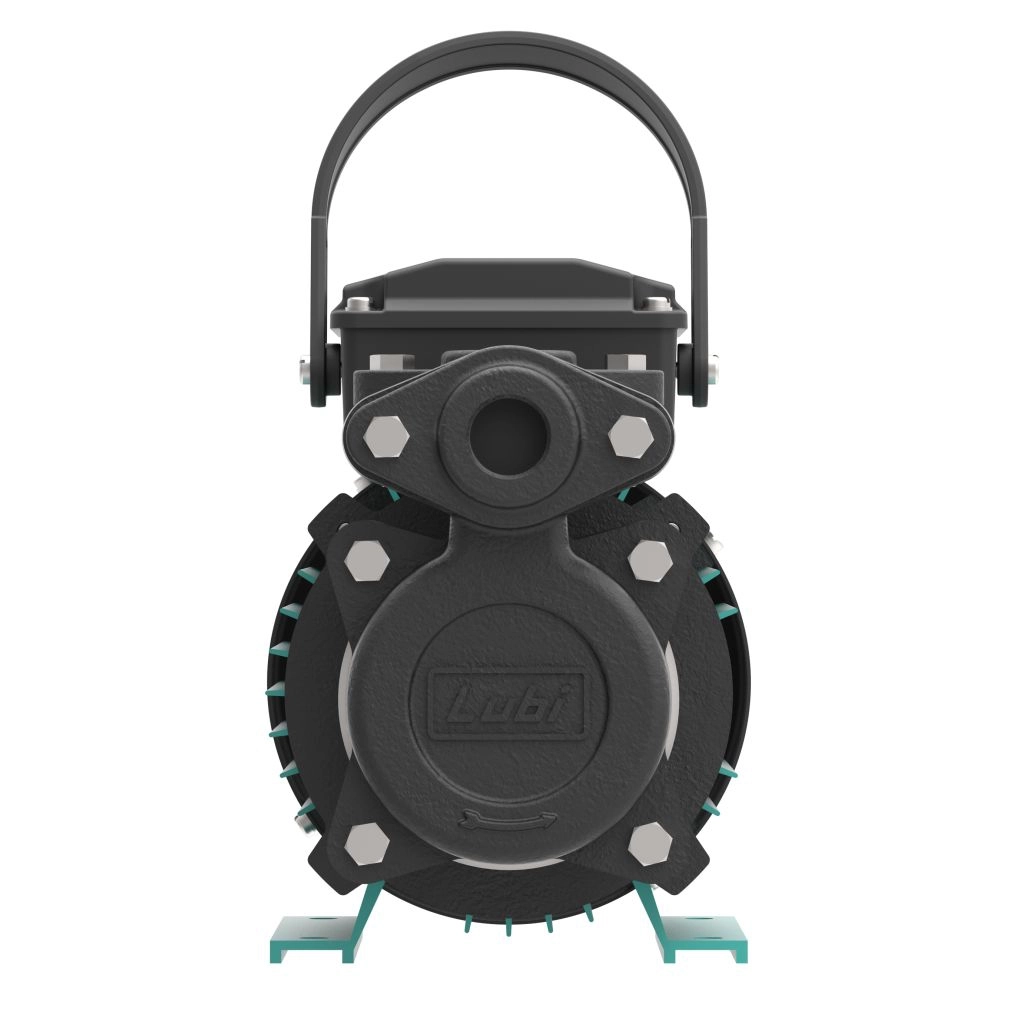

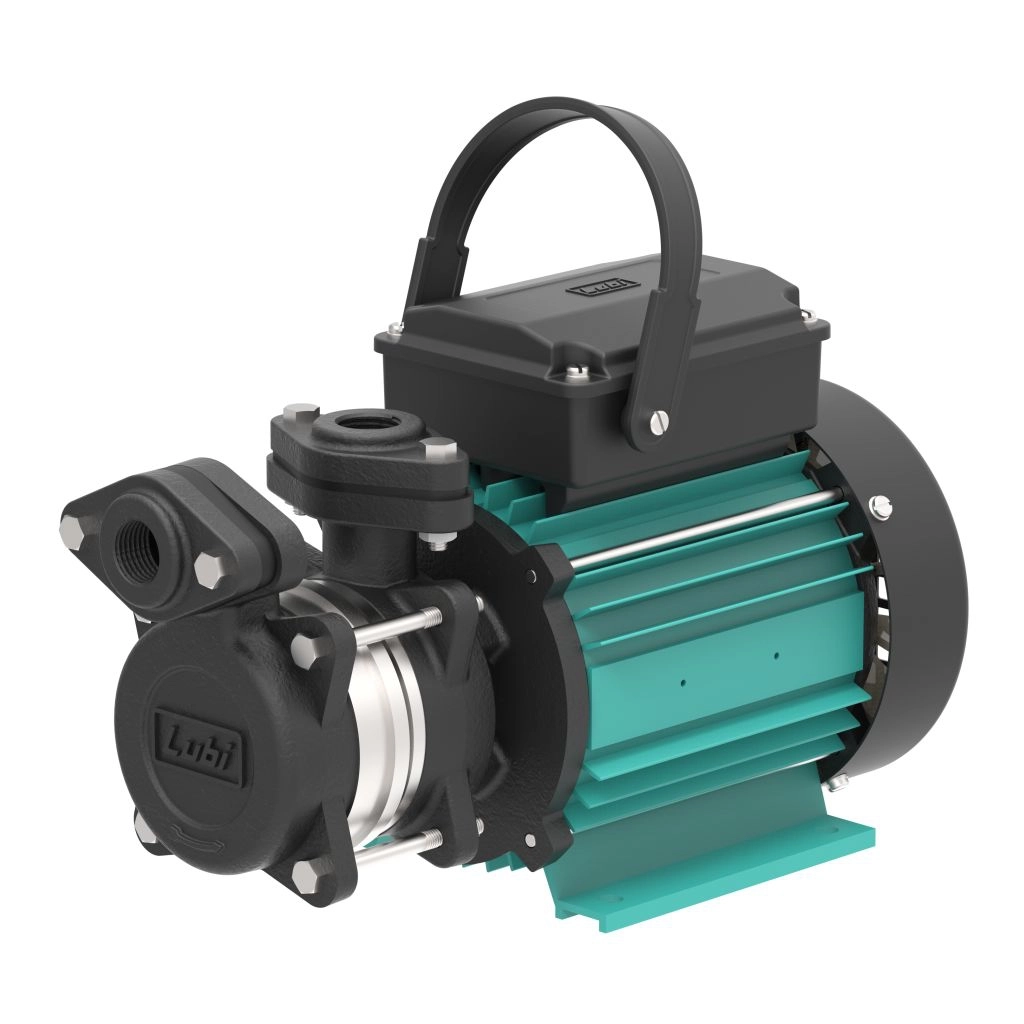

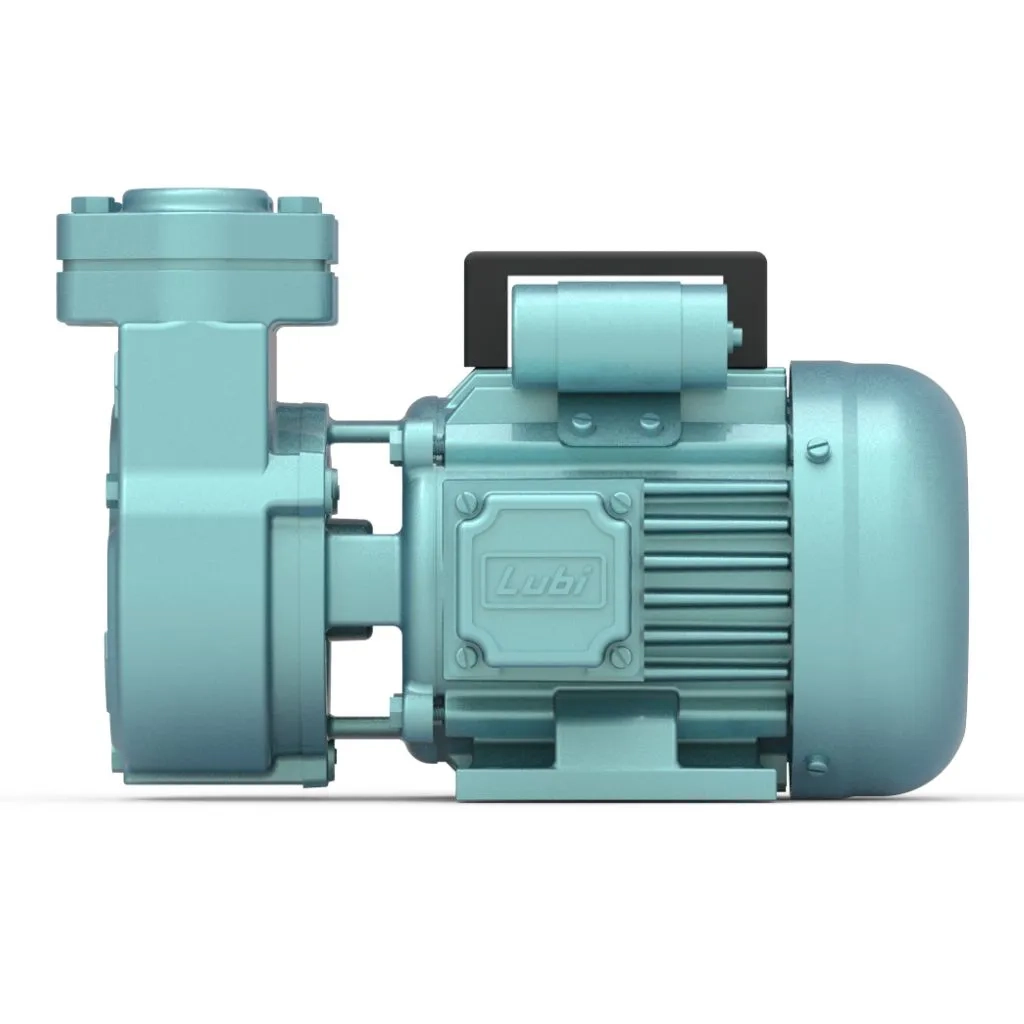

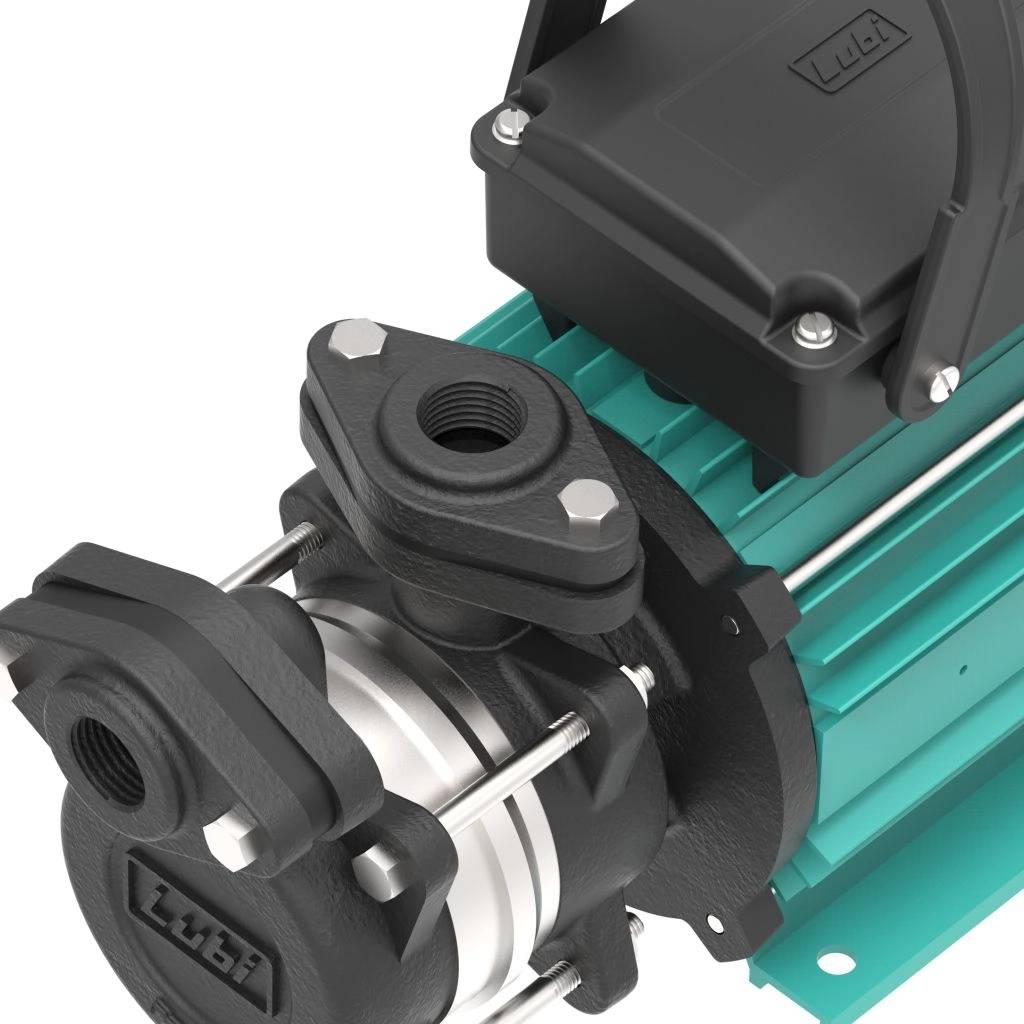

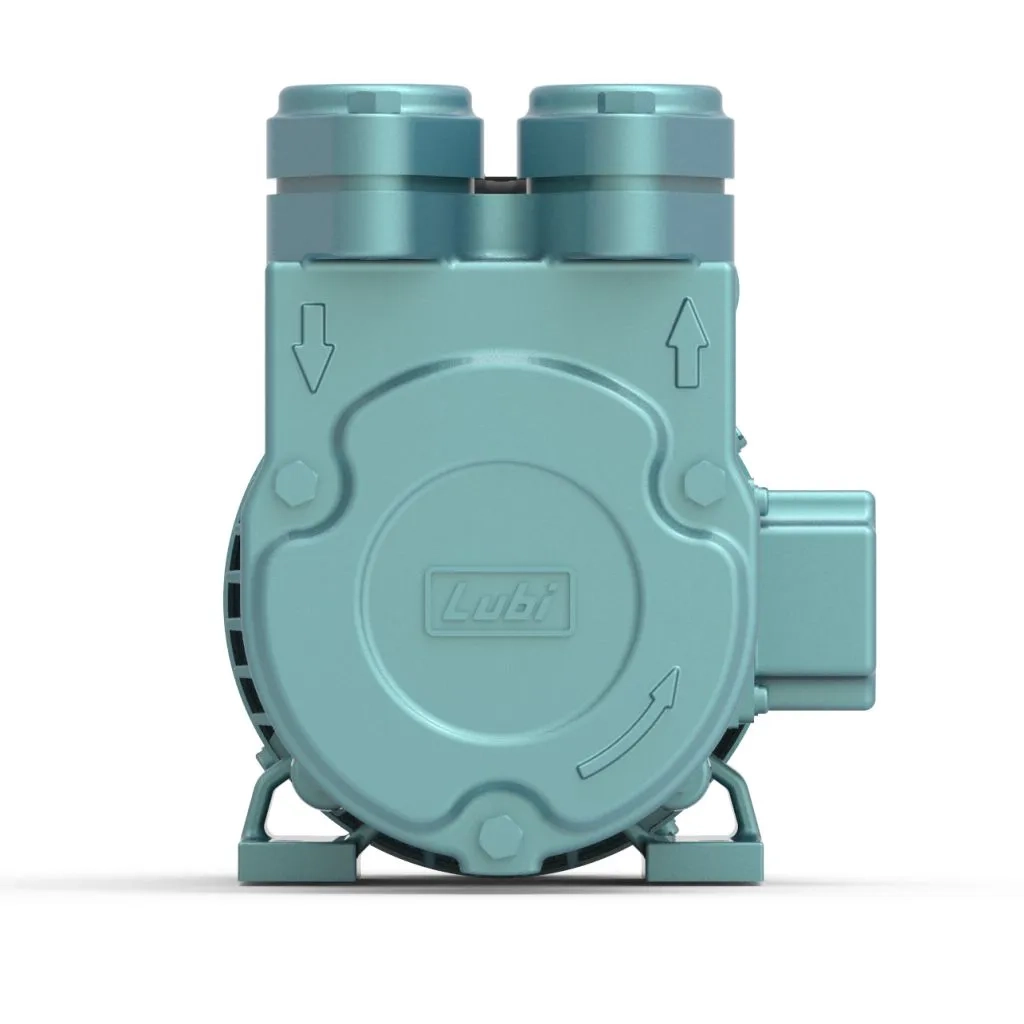

Self Priming Monoblock Pumps (MDH & MDL series)
Features

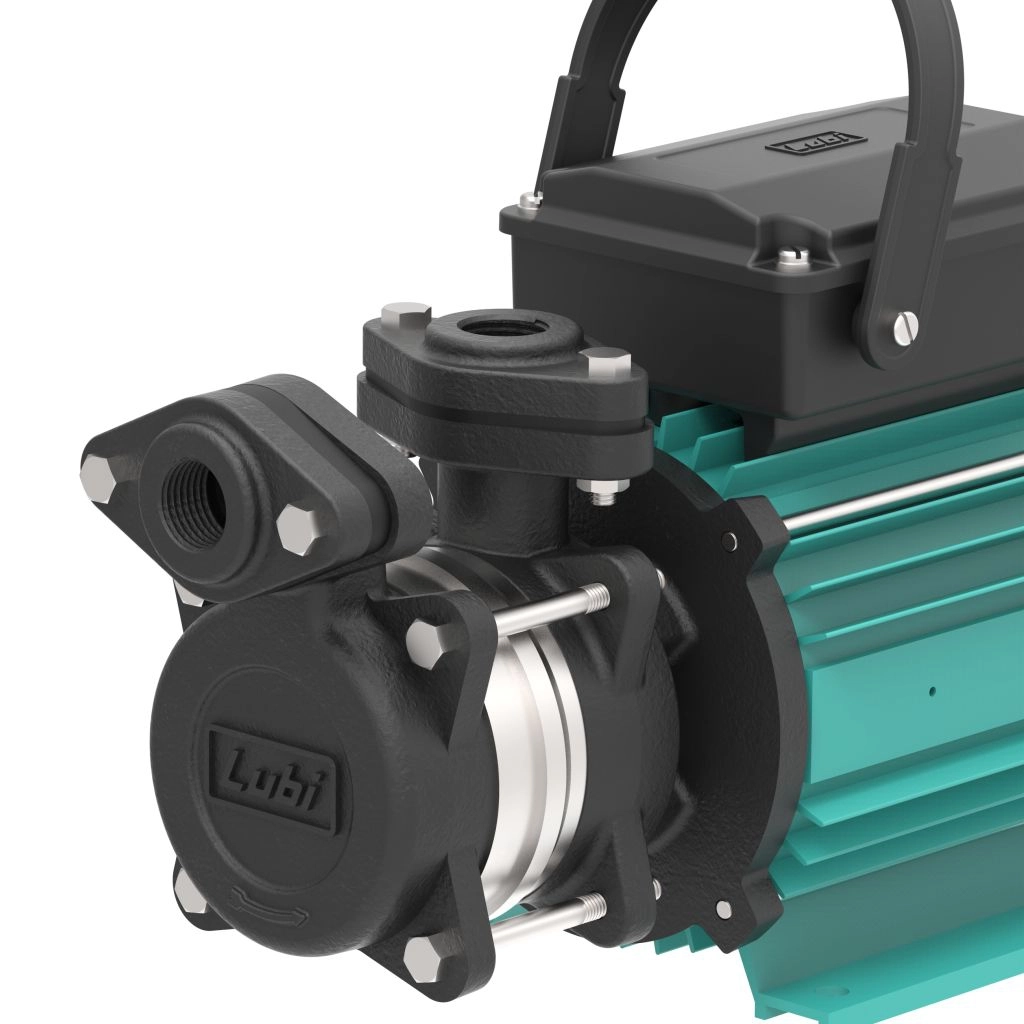

- Pump casing, Adapter, Endshields are made of close grained cast iron of high tensile strength.
- Forged Brass Impeller is used to give trouble free service.
- Motor windings are vacuum impregnated with synthetic varnish for better moisture resistance.
- Superior Mechanical Seal for longer life and effective sealing against water leakage.

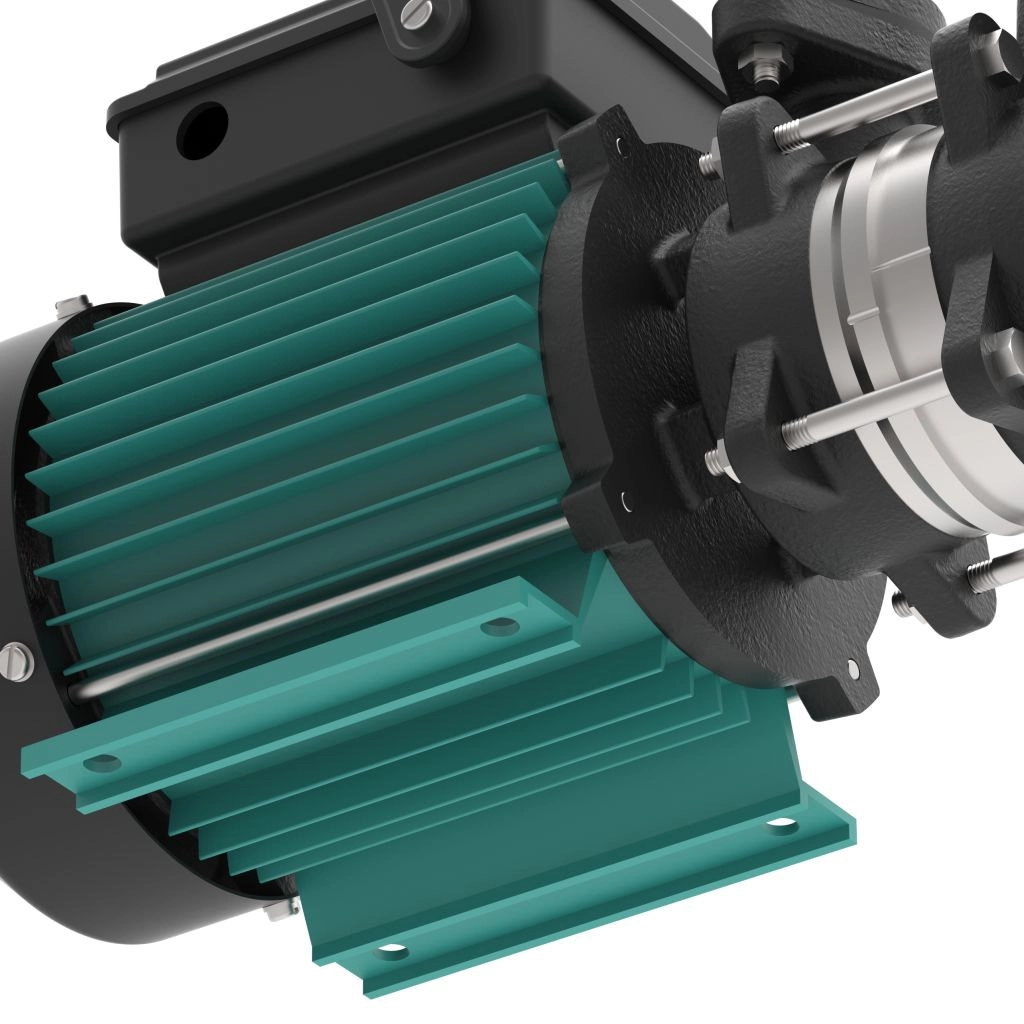

- Aluminium Extruded Motor Body for better heat dissipation and Corrosion resistant.
- Double Shielded pre-lubricated anti-friction ball bearings are fitted at both ends to withstand radial and axial loads.
- Better insulating materials shall be used so that pumpset can withstand high temperature rise.
- Self-Priming up to 6.0 meters at mean sea level.
- Fitted with Thermal Overload Protector (TOP).
- Totally Enclosed Fan Cooled (TEFC) construction resists dust, moisture.
- Light weight, Easy maintenance and spares availability
Variety & Range
- Flow range: up to 4500 LPH
- Head range: up to 54 metres
- Rating: 0.37 to 0.80 kW
- Rated speed: 1440 rpm
Applications
Lawns & Garden
Car Washing
Restaurants
Water Supply
Hotels
Resorts
