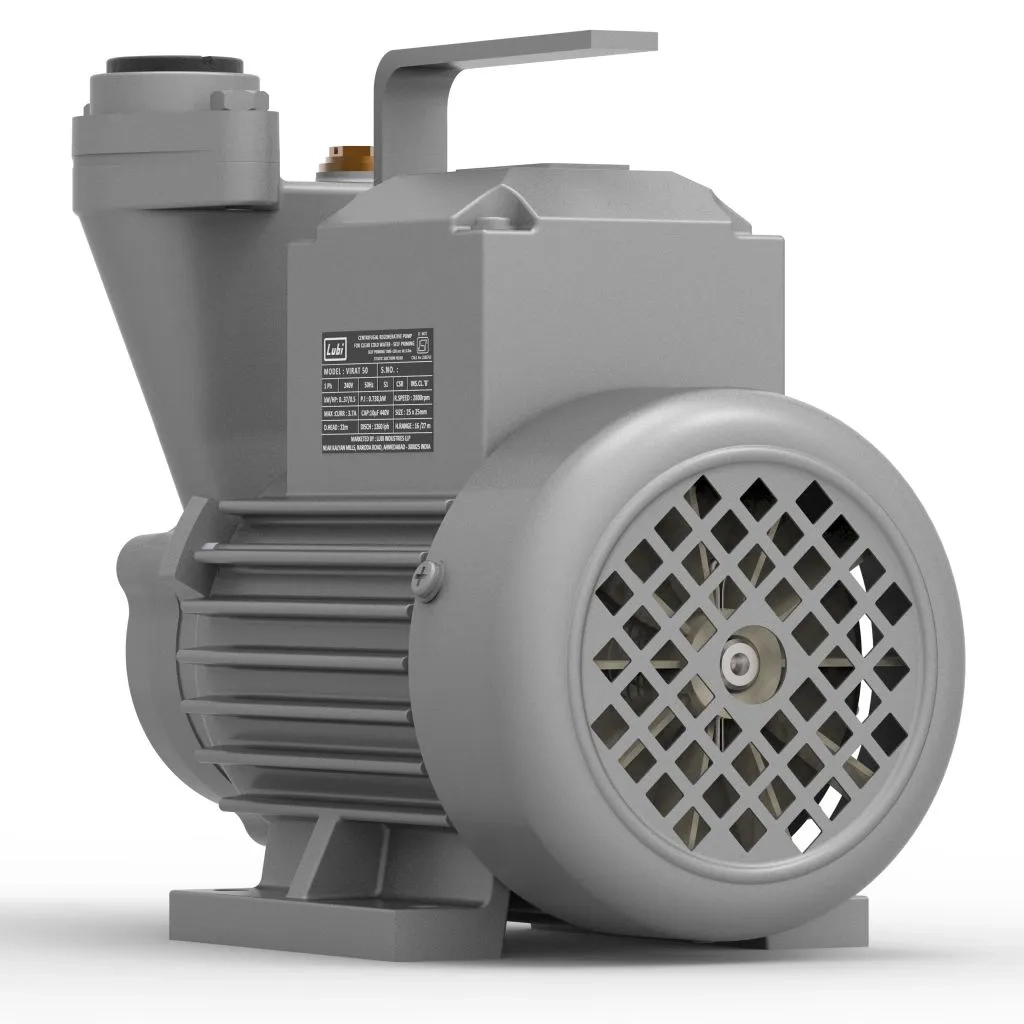

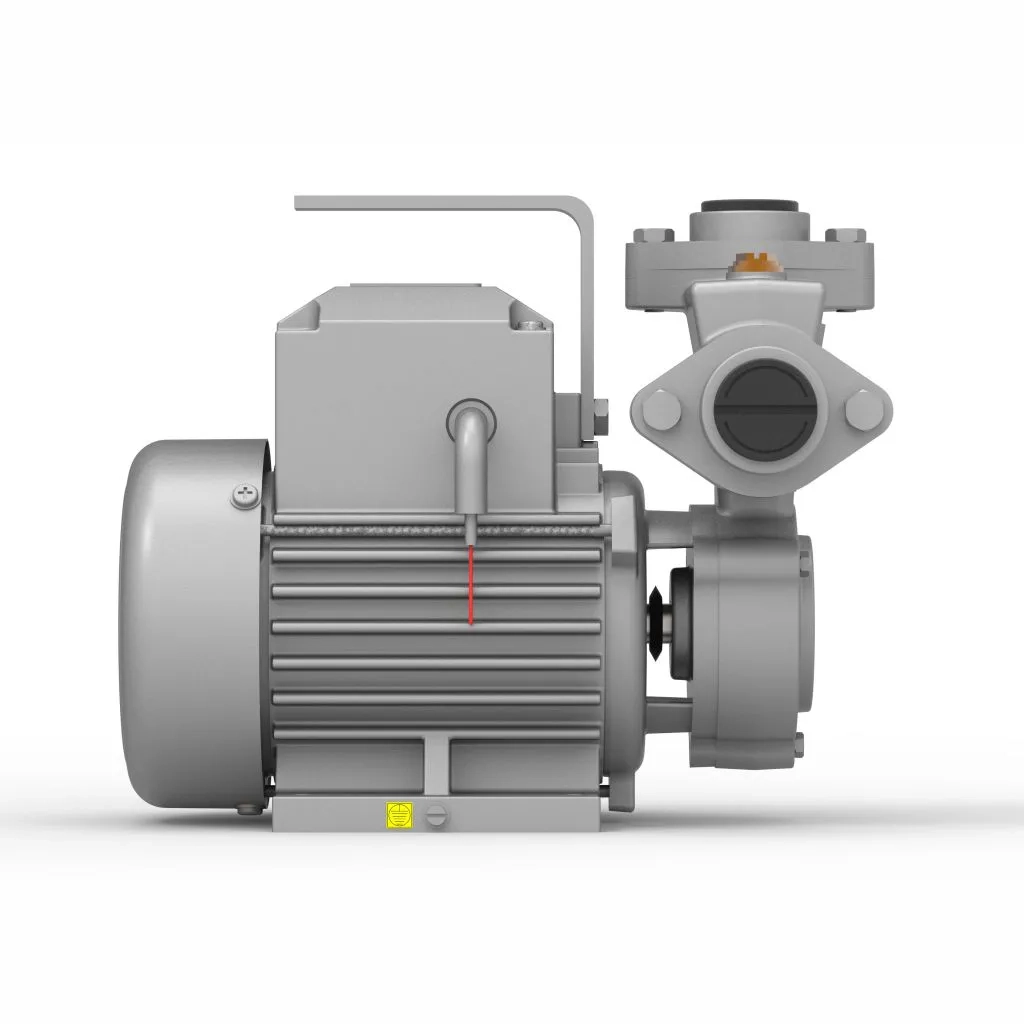

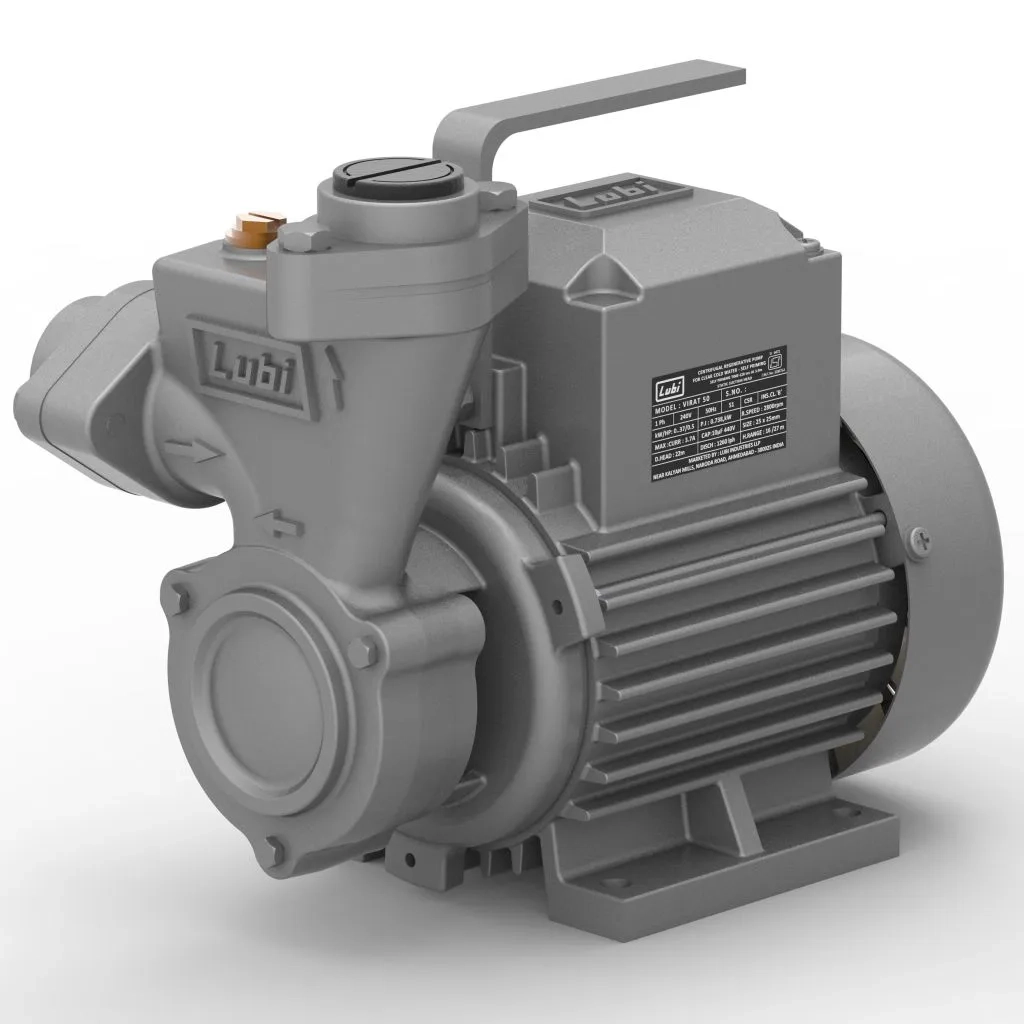

Self Priming Monoblock Pumps (MDH, MDL & VIRAT Series)

Features

  • Pump casing, Adapter, Endshields are made of close grained cast iron of high tensile strength.
  • High Tensile Brass Impeller is used to give trouble free service. Motor windings are vacuum impregnated with synthetic varnish for better moisture resistance.
  • Superior Mechanical Seal for longer life and effective sealing against water leakage.
  • Double Shielded pre-lubricated anti-friction ball bearings are fitted at both ends to withstand radial and axial loads.
  • Better insulating materials are used so that pumpset can withstand high temperature rise.
  • Self-Priming up to 7.5 meters at mean sea level.
  • Fitted with Thermal Overload Protector (TOP).

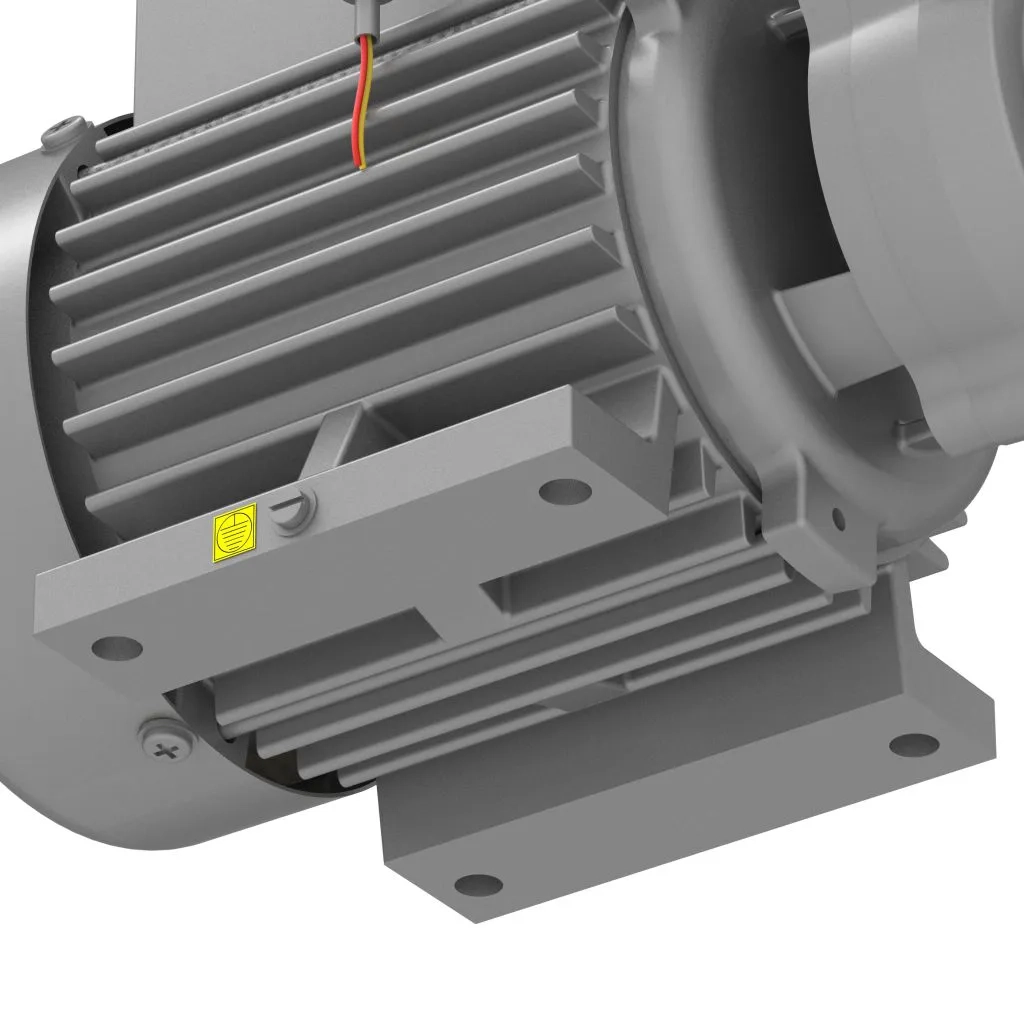

  • Sheet Metal Drip-proof Fan cooled motor body. (MDL-2SP, 4SP) Totally Enclosed Fan Cooled (TEFC) construction resists dust, moisture. (MDL-2TC, 4TC).

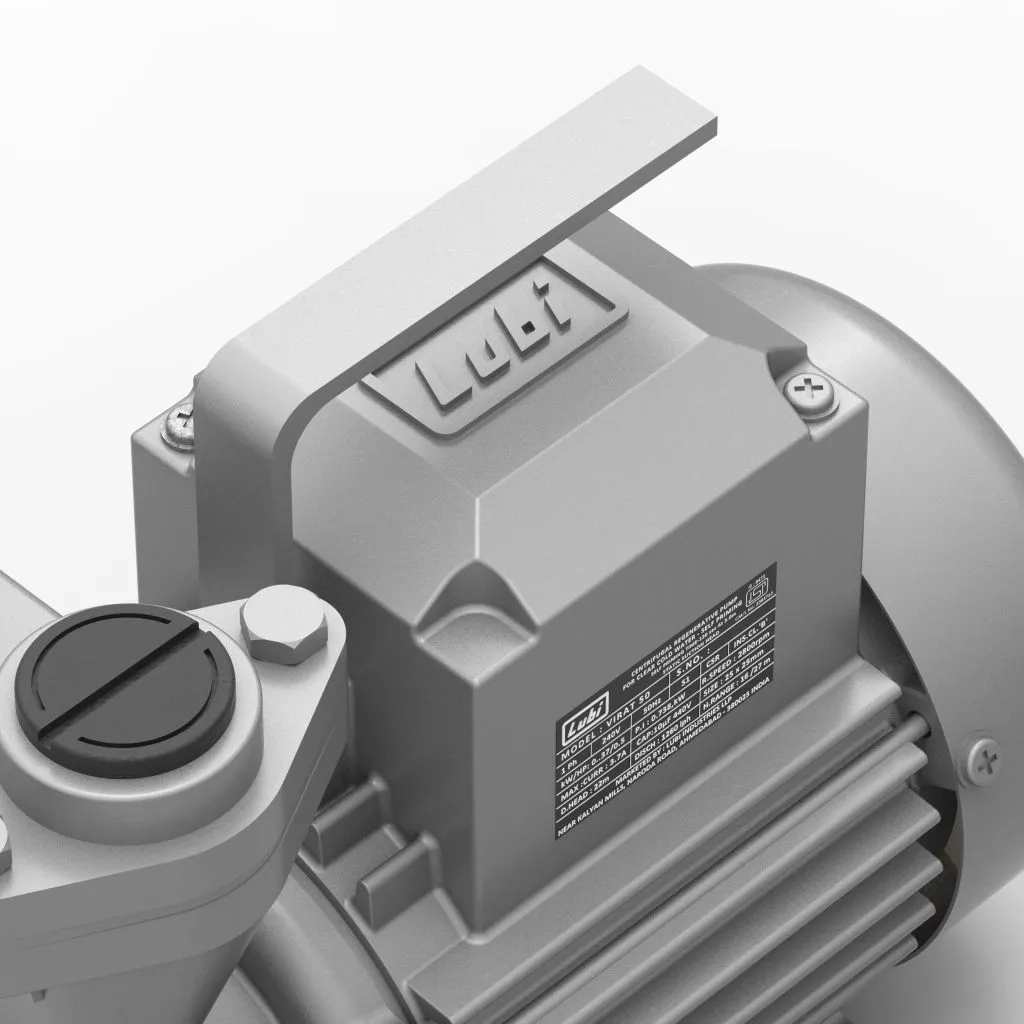

  • Top mounted terminal box with covered capacitors.

Variety & Range

  • Flow range: up to 4500 LPM
  • Head range: up to 40 metres
  • Rating: 0.37 to 0.75 kW
  • Rated speed: 2900 rpm

Applications

Lawns & Garden

Hospital

Restaurants

Water Supply

Industrial

Resorts
